processor

Intel E5 V3/V4, i7, 58xx/59xx series processors.

Southbridge

X99 Chipset series

memory

technology

Dual channel DDR 3/DDR 4 DDR 3 1066/1333/1600/1866 MHz DDR 4 2133/2400/2666/3000/3200mhz.

maximum capacity

64GB

Memory slot

2 * 240 PIN  ECC/DDR3； 2 * 288PIN ECC/DDR4

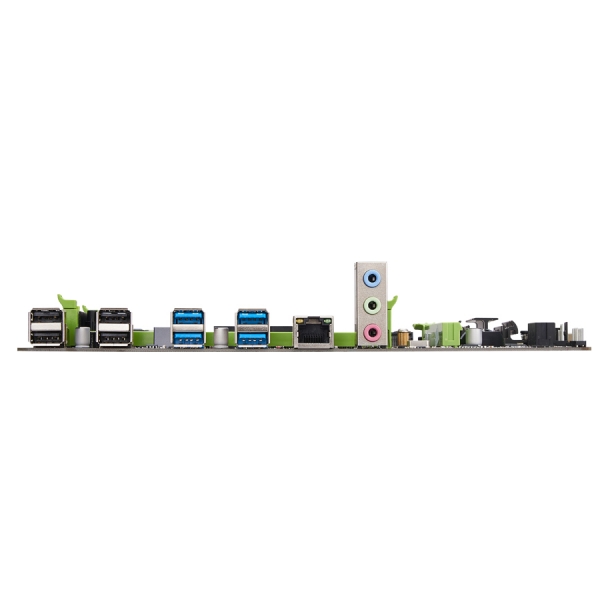

Post I/O

USB port

4 USB 3.0；; 4 USB 2.0

Audio

1 (Mic-in, Line-out, Line-in)

Ethernet

1 gigabit network card, RTL8111H network card chip.

Internal connector

USB 2.0

2 (one FUSB can switch out two USB 2.0 interfaces);

USB 3.0

2 (one FUSB can switch out two USB 3.0 interfaces);

serial port

one

PCIe

2 (1 PCIe x16；; 1 PCIe x1)

ATXPWR interface

1 standard 1x8PIN power socket; 1 standard 1x24PIN power socket

Audio

1 x 2x5Pin pin

M.2 interface

1 MINI PCIE, which can support PCIE M.2 or SATA M.2 through MSEL.

Physical size

measure

187 mm x 237 mm
