processor |
Intel Bay Trail-M/D series processors |
||
|
CPU |
Such as: J1800, J1900, N2940, N2930, N2840. |
||
|
memory |
technology |
Single channel DDR3L 1333MHz |
|
|
|
maximum capacity |
8GB |
|
|
|
Memory slot |
1 x 204Pin DDR3L SO-DIMM |
|
|

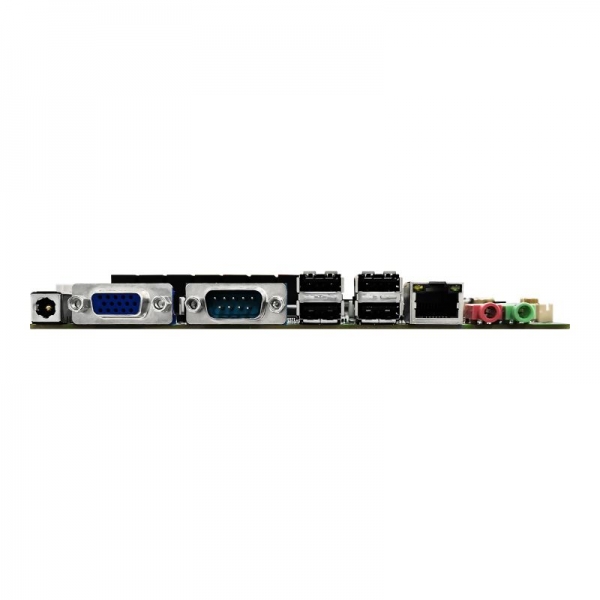

Post I/O |
power source |
1 standard 2.5mm DC power socket |
|
|
|
serial port |
Support one onboard DB9 serial port (RS232 mode only) |
|
|
|
VGA |
Standard DB15 socket (VGA interface and JVGA interface can only be selected) |
|
|
|
Ethernet |
1 Realtek Gigabit NIC |
|
|
|
USB port |
4 USB2.0 interfaces |
|
|
|
Audio |
2 (Mic-in, Line-out) |
|
|
Internal connector |
USB port |
5 USB2.0 interfaces (one FUSB can switch out two USB2.0 interfaces) |
|
|
|
PS2 interface |
1*7Pin 2.0mm white socket, which can connect PS2 keyboard and PS2 mouse. |
|
|
|
serial port |
5 (serial ports all support RS232 mode, among which COM2 and COM3 support RS422 and RS485 mode) |
|
|
|
parallel port |
1 2*13Pin pin |
|
|
|
JVGA |
Supports 1*12Pin pins (VGA and JVGA can only be selected) |
|
|
|
LVDS interface |
Support single (dual) channel 18(24) bits, (LVDS and EDP can only be selected) |
|
|
|
EDP interface |
Support 4 LANE eDP channel |
|
|
|
Audio |
1 2*5Pin pin (Mic-in, Line-out) |
|
|
|
power amplifier |
1*4Pin 2.0mm white socket, supporting 2 speakers with 5W2. |
|
|
|
Mini-PCIe |
1 Mini PCIe slot of full-length card (supporting WIFI and 4G modules) |
|
|
|
MSATA |
Support SSD hard disk |
|
|
|
serial ata |
1 7Pin SATA interface, supporting SATA 2.0 |
|
|
|
GPIO |
8-way bidirectional 3.3V |
|
|
|
PWR interface |
1 standard 2x2 Pin power socket |
|
|
Watchdog |
output |
system reset |
|
|
|
space |
Programmable for 1-255 seconds |
|
|
power consumption |
Maximum power |
Standby power consumption: 6W Full load power consumption: 32.4W |
|
|
environment |
temperature range |
working environment |
Storage environment |
|
|
|
Temperature:-10 ~ 60℃ Humidity: 5%~95% |
Temperature: -40~85℃ Humidity: 5%~95% |
|
DC power supply |
adapter |
DC 12V power input |
|
|
Physical size |
measure |
170 mm x 170 mm |
|
